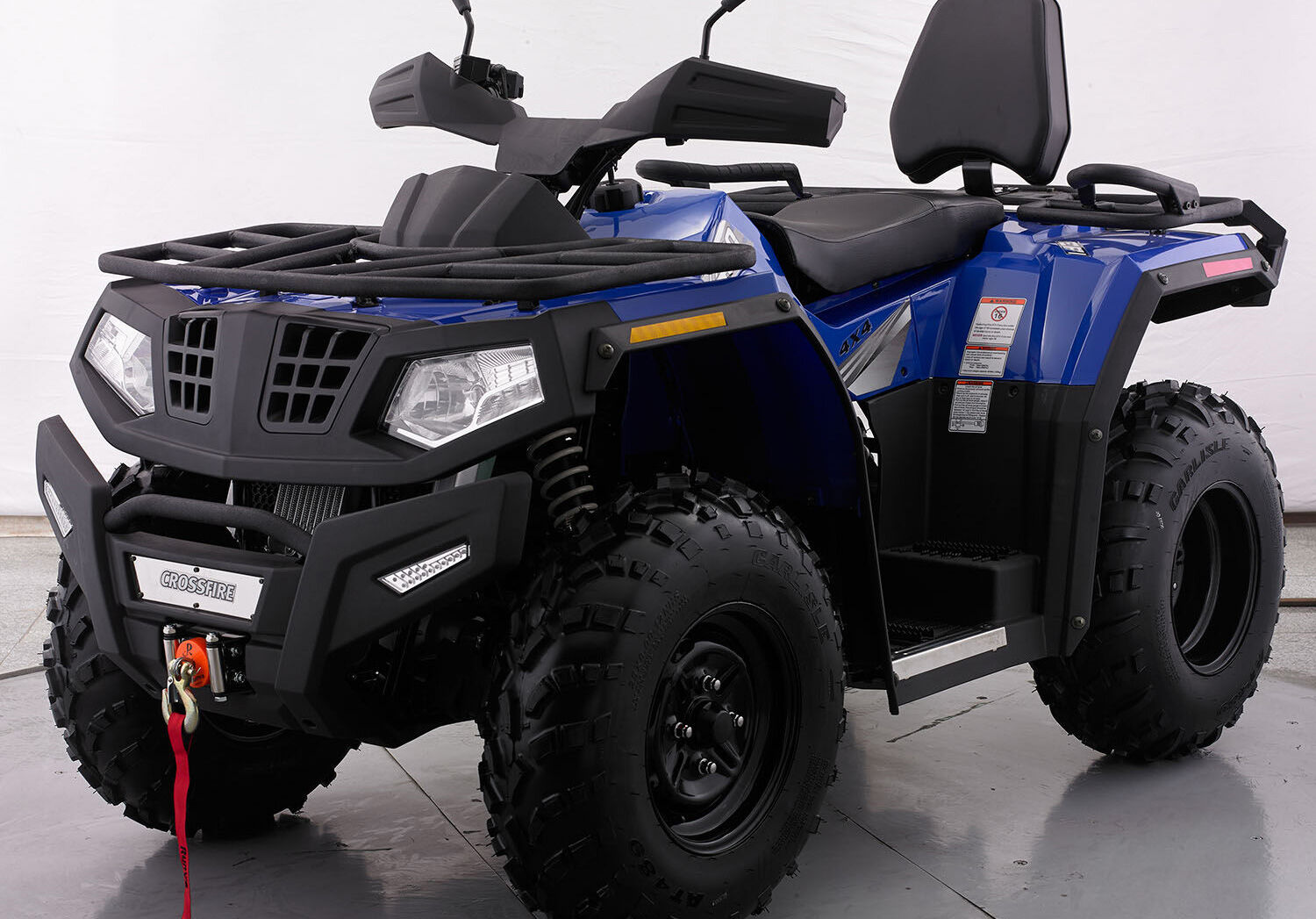

The X400 is a capable 4WD ATV. The advanced Delphi Fuel injections system ensures fuel efficiency while maximising power and minimising emissions. Being lighter in weight than our larger machines makes it more nimble and easier to handle while retaining a full-size seat to ensure driver comfort during a long day in the saddle.

The Crossfire X400 4x4 Farm ATV is designed to meet the toughest demands of Australian farms and rural terrain while remaing affordable. One of its key advantages is the shaft-driven 4WD system, offering greater durability and reliability compared to chain-driven alternatives. This low-maintenance drivetrain only requires periodic inspections, reducing ongoing servicing costs for farm operators.

Built with productivity and practicality in mind, the X400 comes standard with a powerful winch and tow hitch, adding significant value for users needing to haul, tow, or assist in daily farm tasks. Whether it’s dragging fallen branches or pulling equipment, the X400 is ready for work straight out of the box.

Engineered for safety, the Crossfire X400 exceeds the minimum required lateral stability tilt angle of 28.81° by achieving an impressive 32.3°, offering enhanced rollover resistance on slopes and uneven ground. This makes it a safer, more stable choice for Australian conditions.

In compliance with the Australian Quad Bike Safety Standard, every Crossfire X400 is shipped with a Quad Bar Flexi CPD (Crush Protection Device) included in the carton. It is mandatory for all Crossfire dealers to fit this safety device prior to delivery or pickup, ensuring full compliance with national safety regulations and giving buyers peace of mind.

Whether you're herding stock, towing tools, or covering ground fast, the Crossfire X400 is a feature-rich, mid-size 4x4 farm ATV

The aim of the X400 is to be an entry level, affordable machine for farming.



WARRANTY

6 months up to 12 months*

*If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 12 months for vehicles up to 250cc. Please make sure you have proof of services.

Specifications

ENGINE
Engine 4-stroke SOHC
Displacement 400cc
Power 20 HP @6500 rpm
Torque 22 N.m @5500 rpm
Drive 2WD / 4WD Shaft
Cooling Liquid Cooled + oil cooler
Carburettor Delphi MTO 5 EFI
Starter Electric and pull start
Ignition ECU
Transmission CVT H-N-R
Clutch Wet multi-plate
Compression ratio 9.7:1
Bore x stroke 91 x 61.5 mm
Fuel capacity 11 L
SUSPENSION / BRAKES / TYRES
Suspension Front Dual A-ARM independent
Suspension Rear Single swing arm mono shock
Brakes Front Dual Disc
Brakes Rear Single Disc
Rims 12″ steel
Tyres Front 25 x 8-12
Tyres Rear 25 x 10-12
DIMENSIONS
Dimensions (L x W x H) 2100 x 1060 x 1170 mm
Seat height 940 mm
Ground clearance 250 mm
Empty vehicle weight (EVW) 305 kg
Max rider and cargo weight 160 kg
Towing capacity 220 kg inc rider
Winch 1100 kg
Cargo racks Front & rear
Passenger backrest Standard

Crossfire x400 Resources

Explore Crossfire x400 Resources: Brochures, User Manuals, Diagrams, and Technical Information
