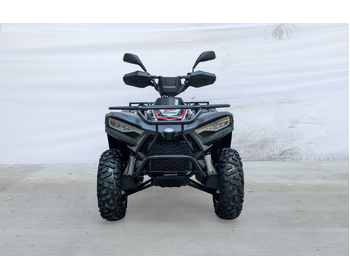

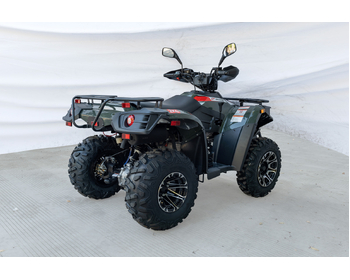

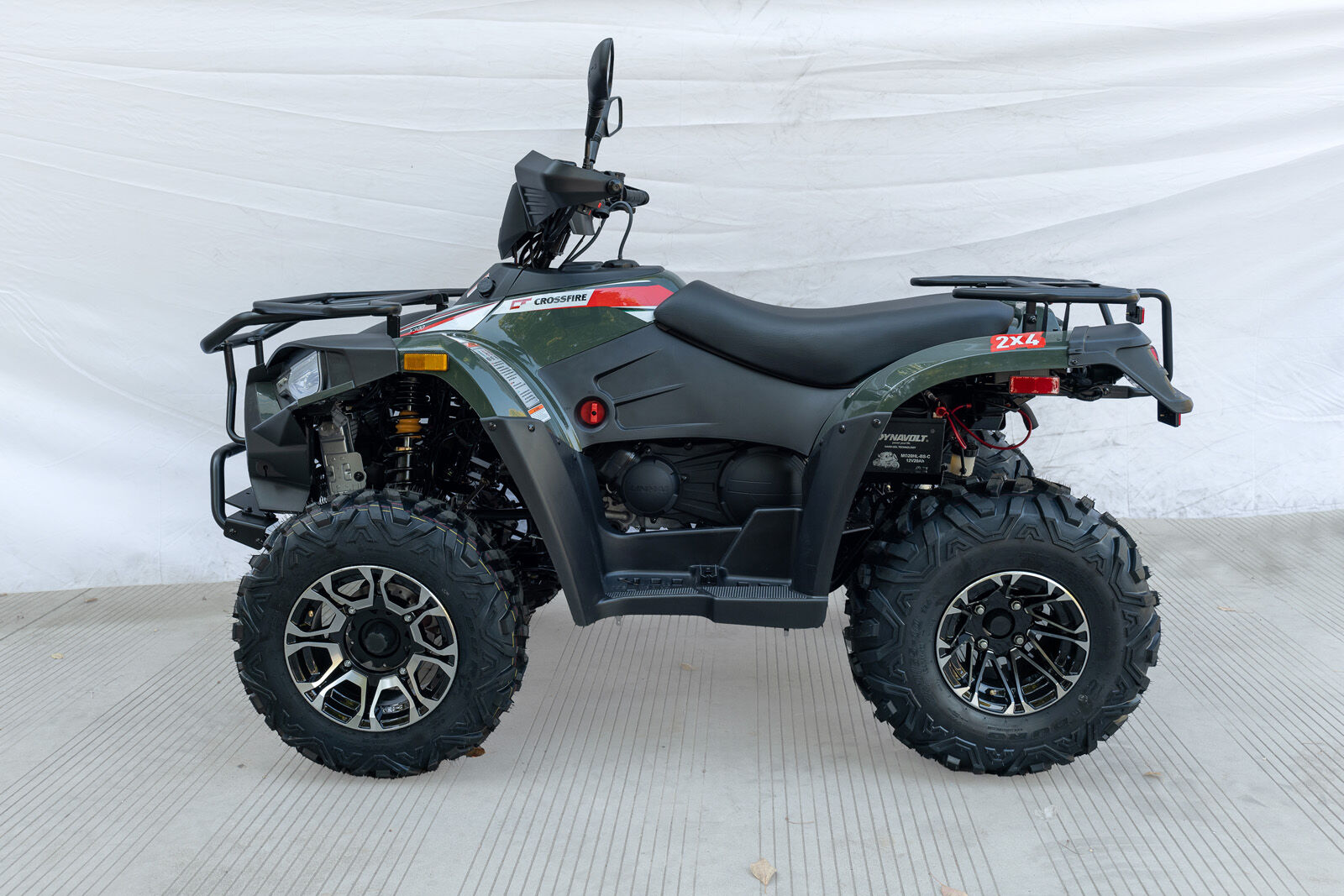

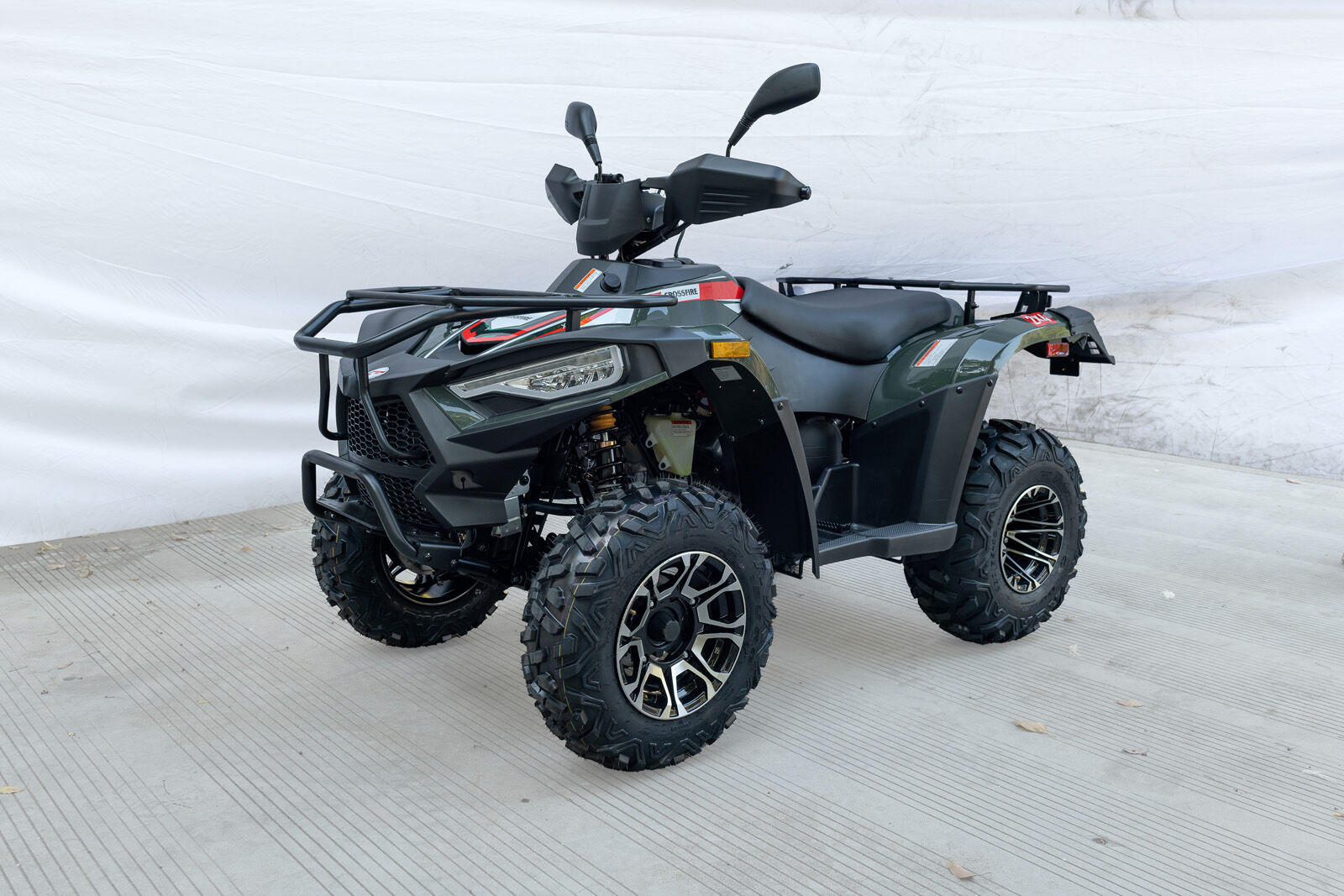

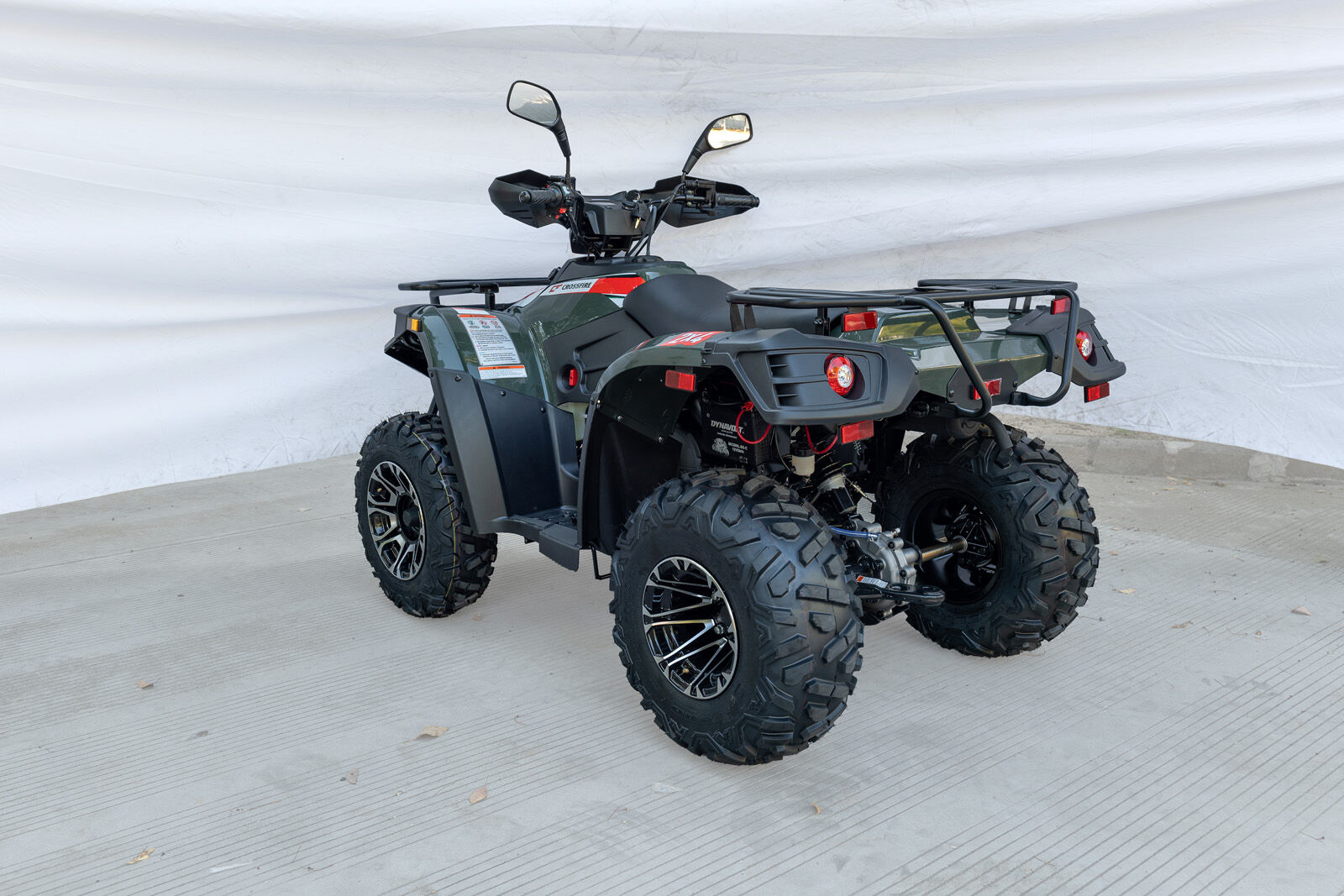

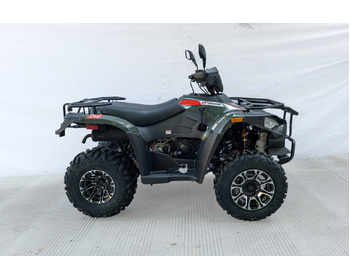

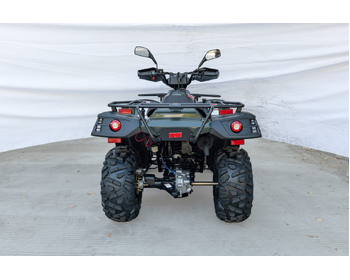

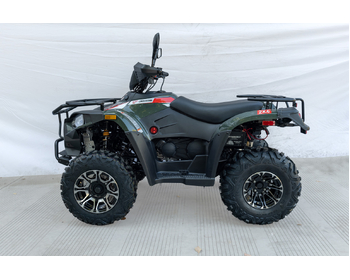

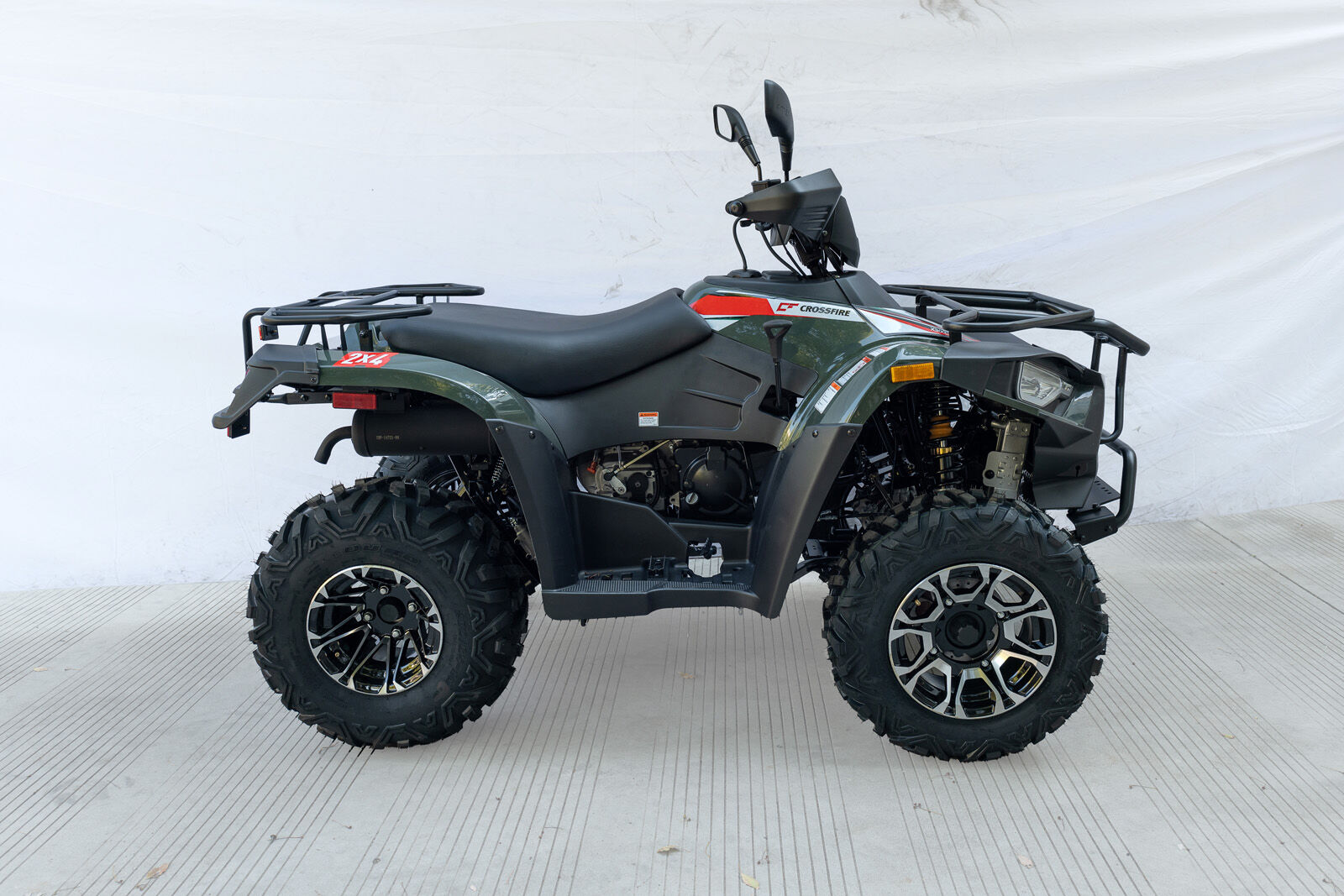

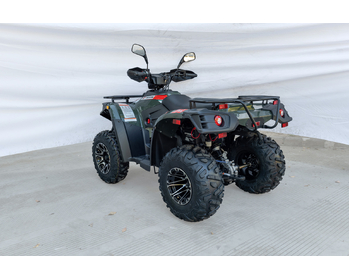

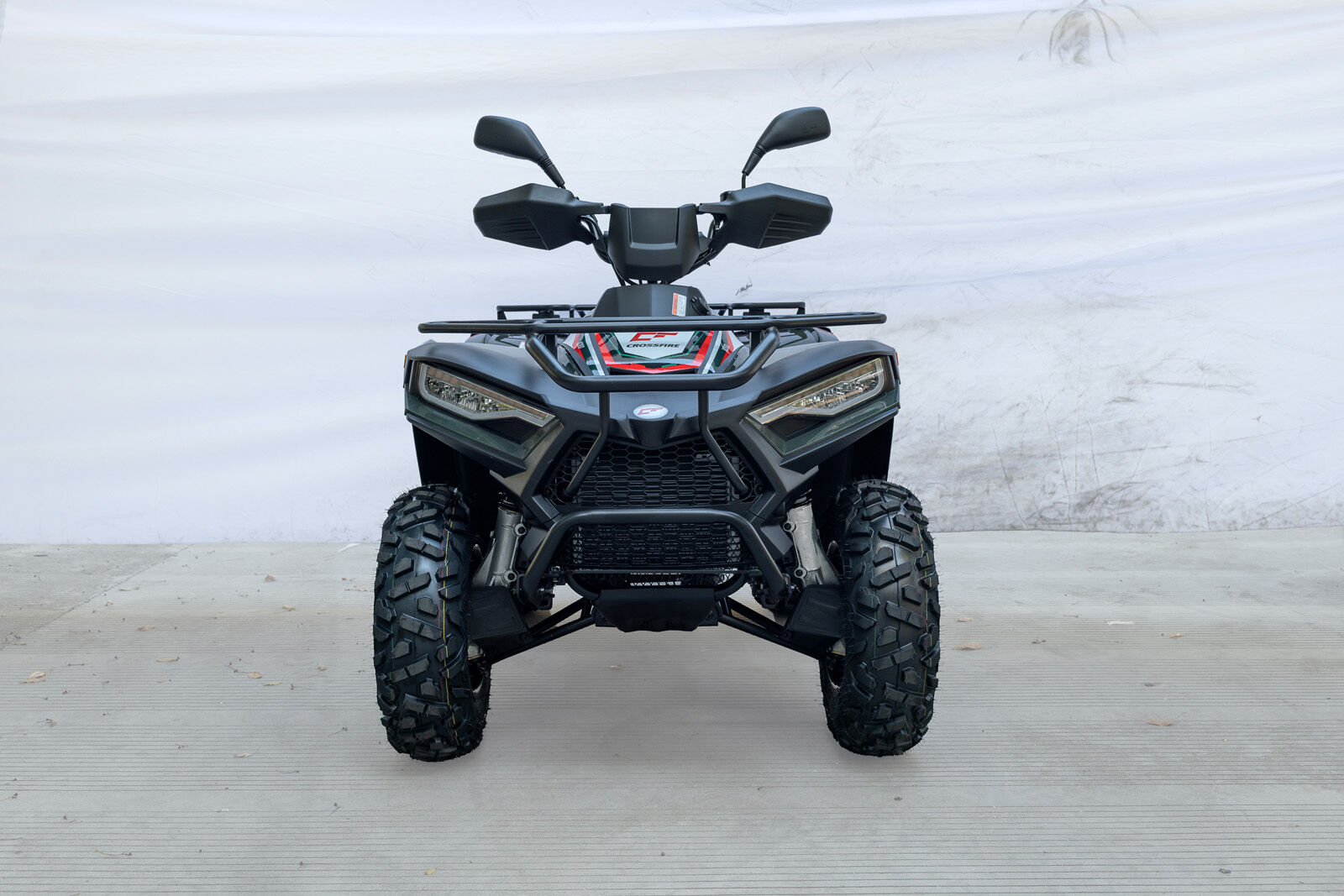

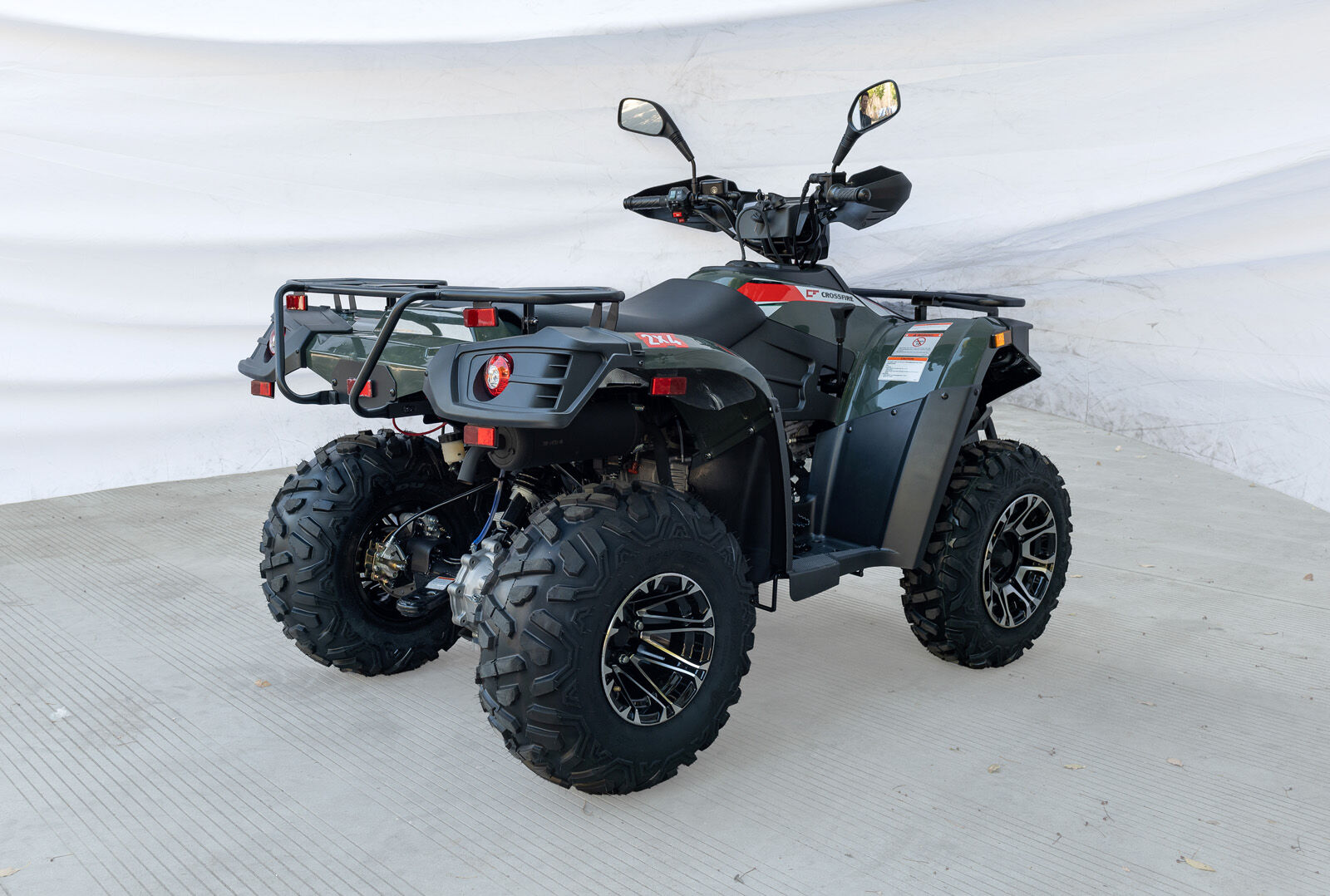

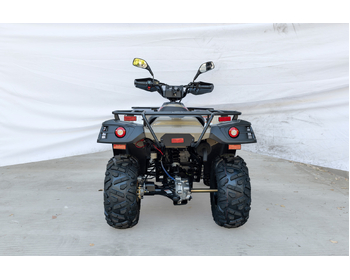

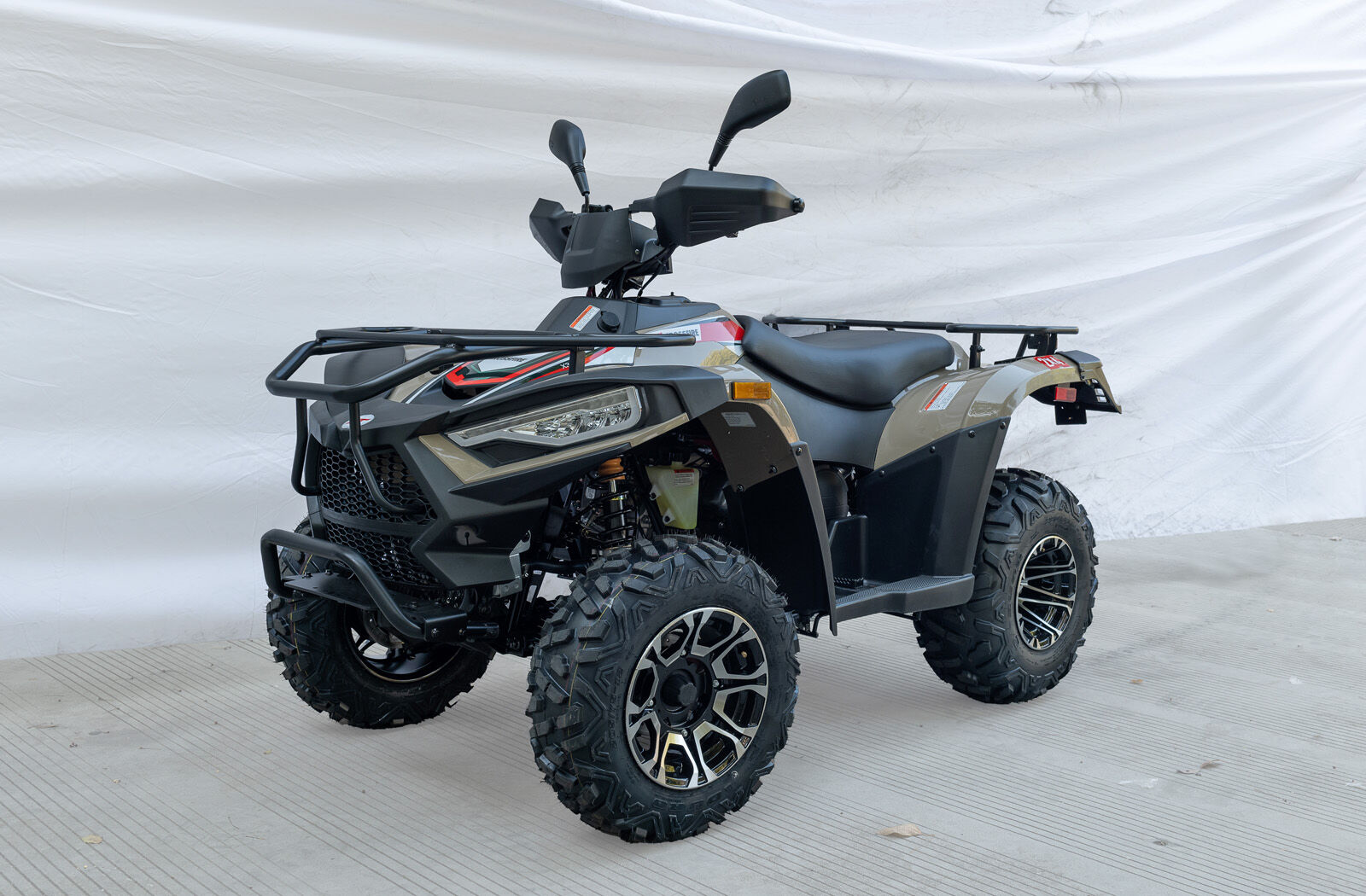

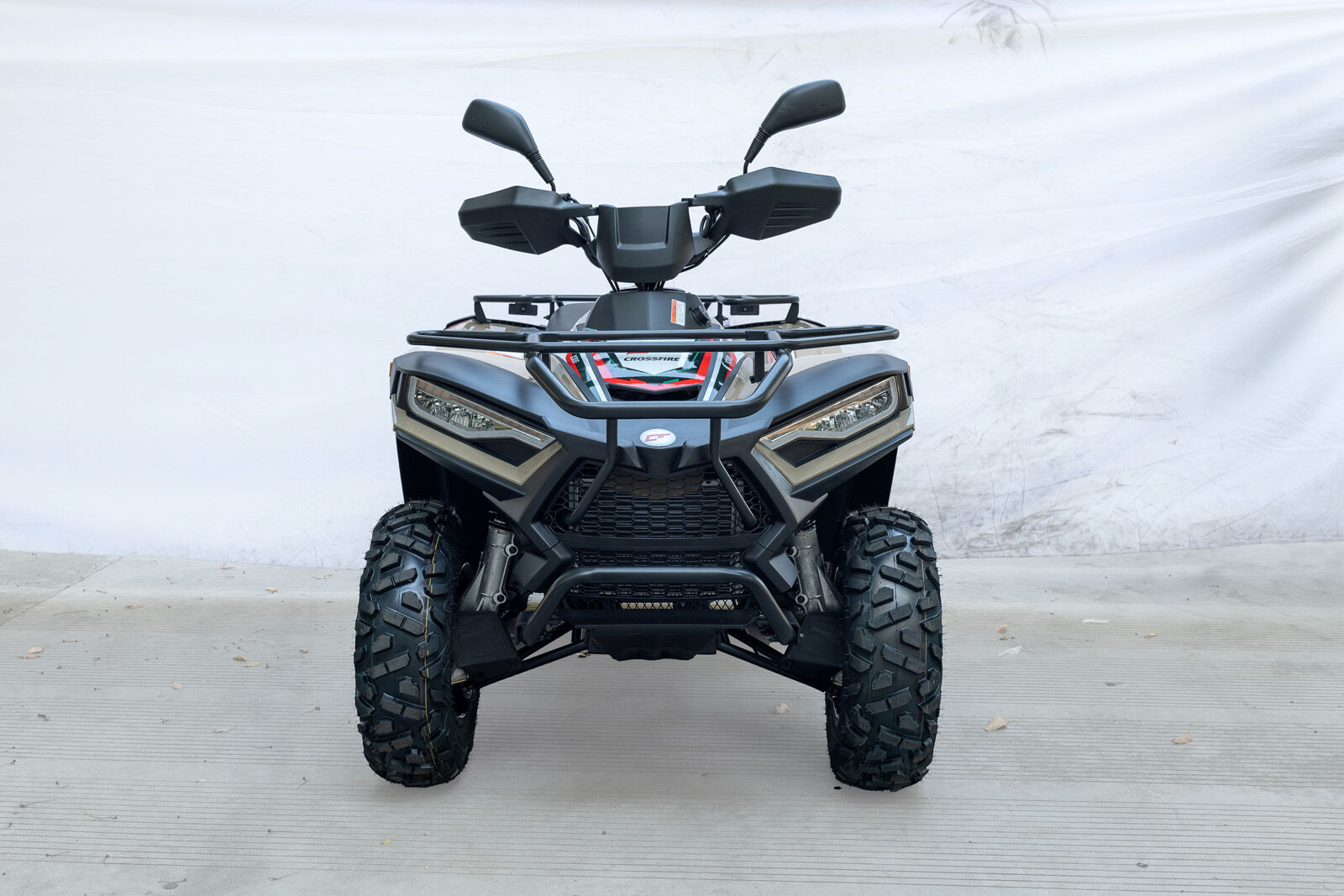

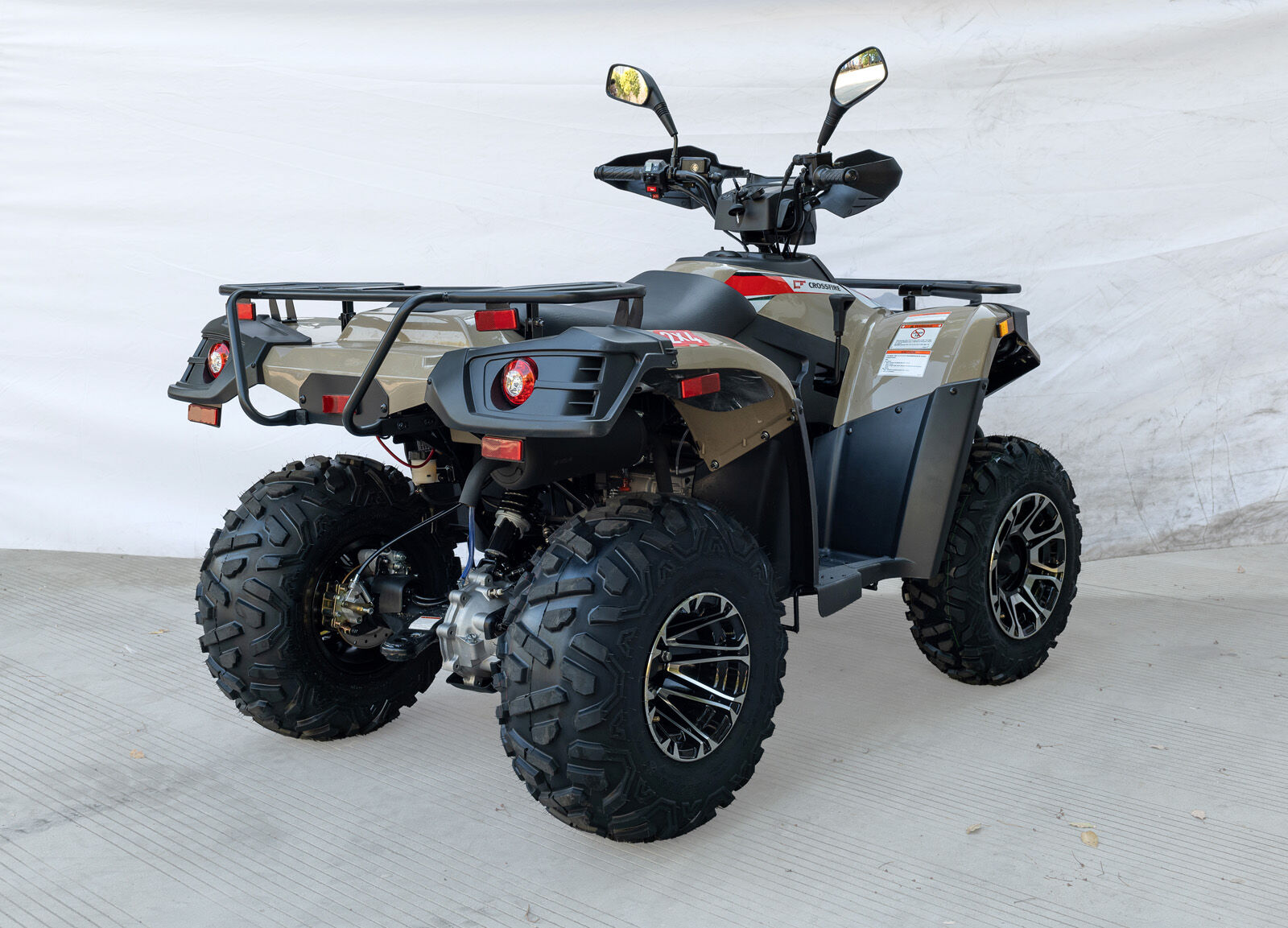

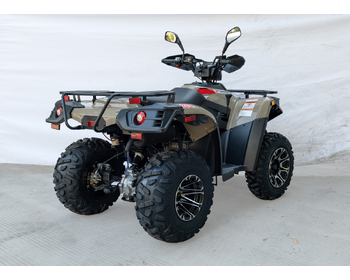

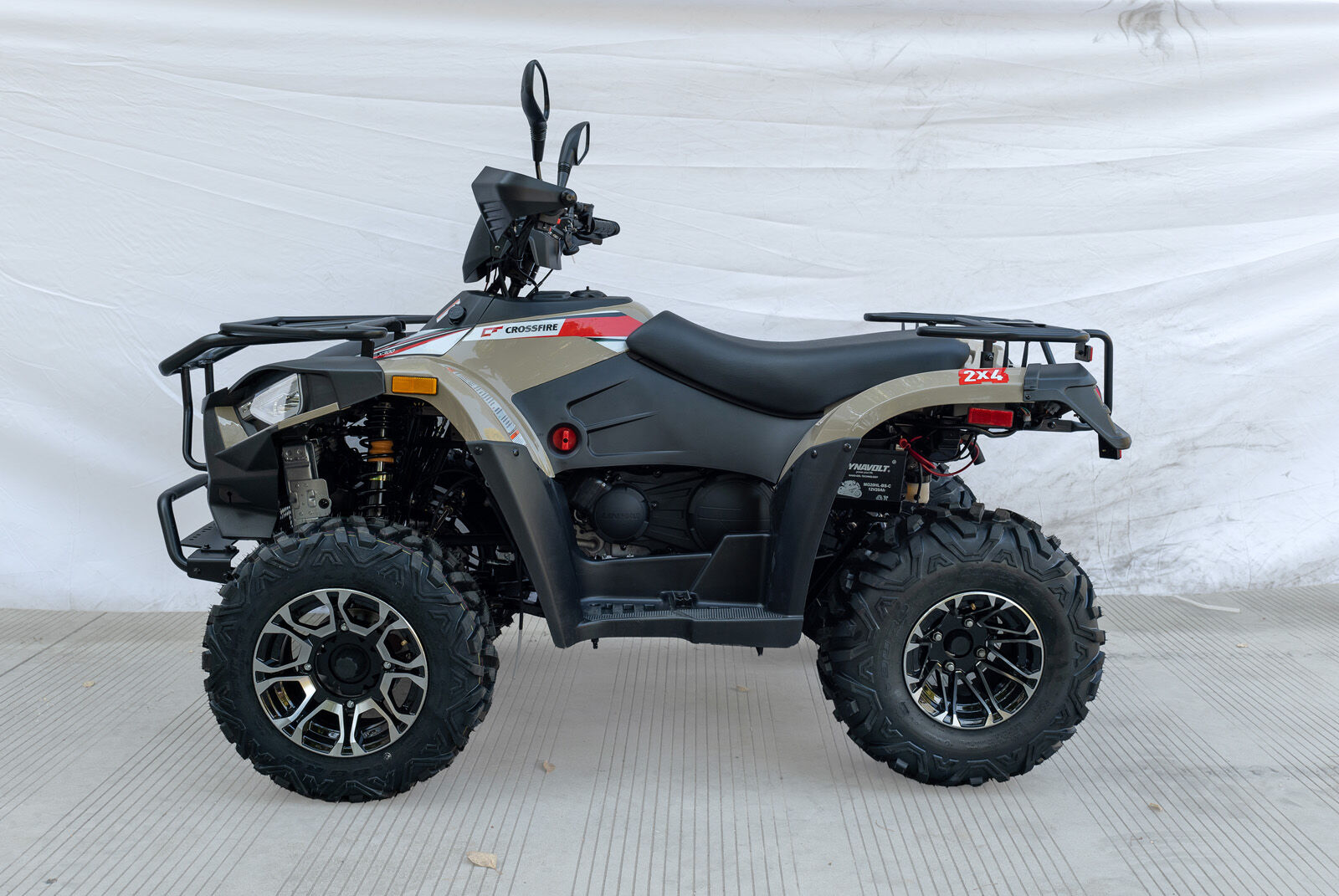

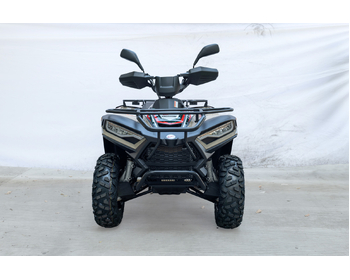

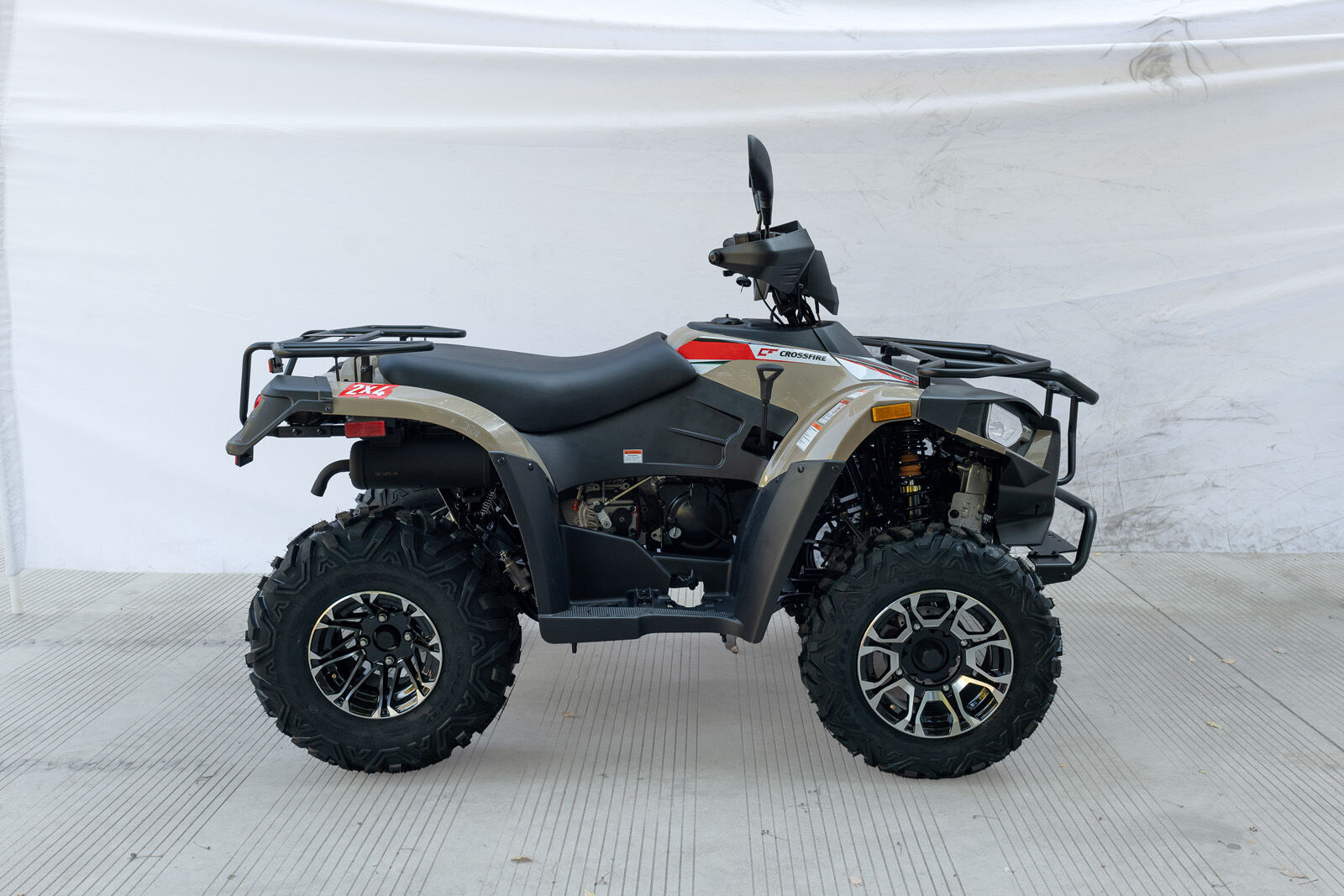

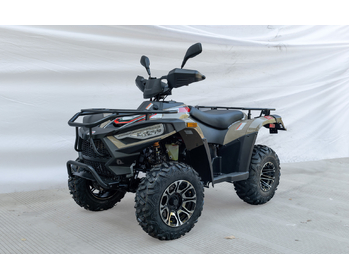

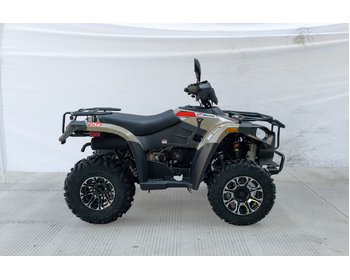

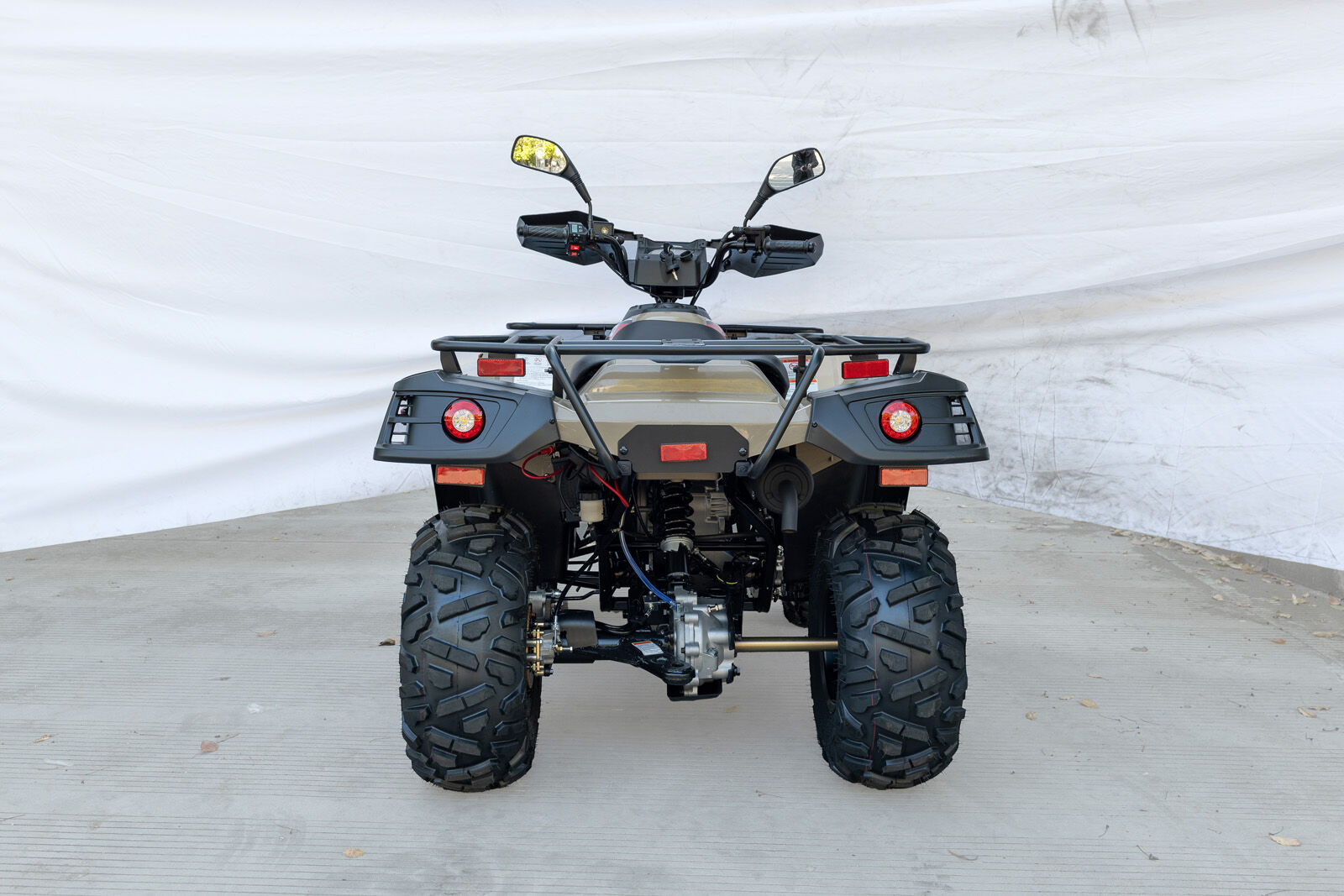

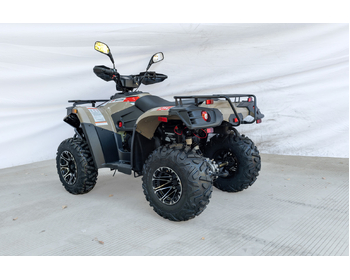

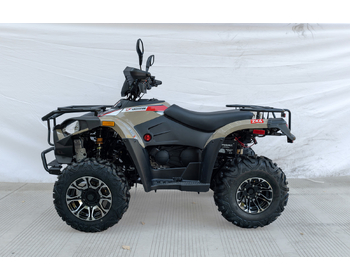

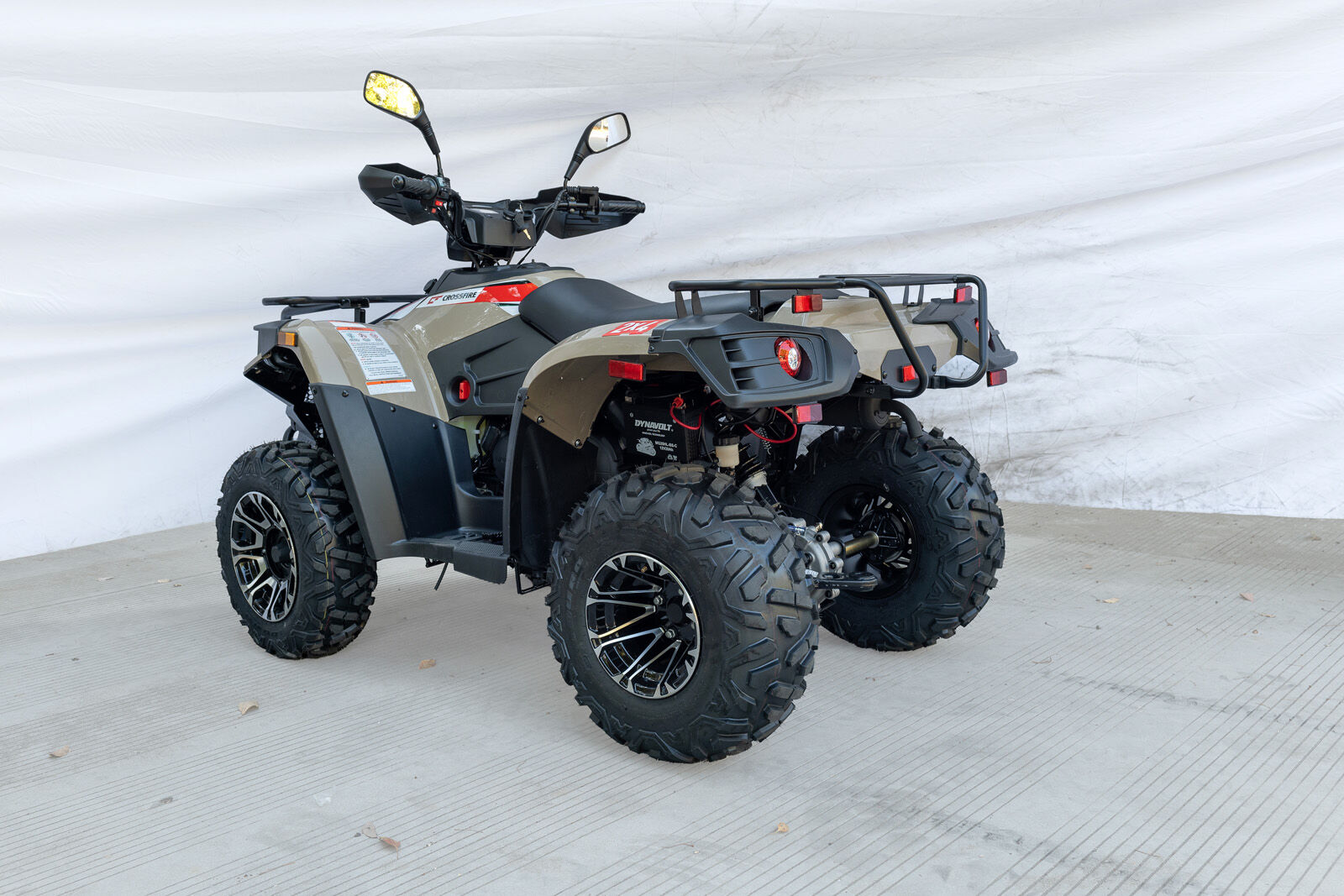

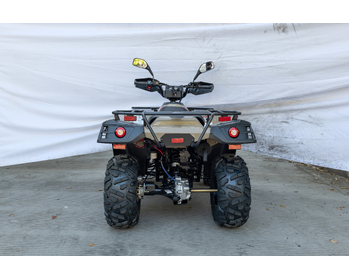

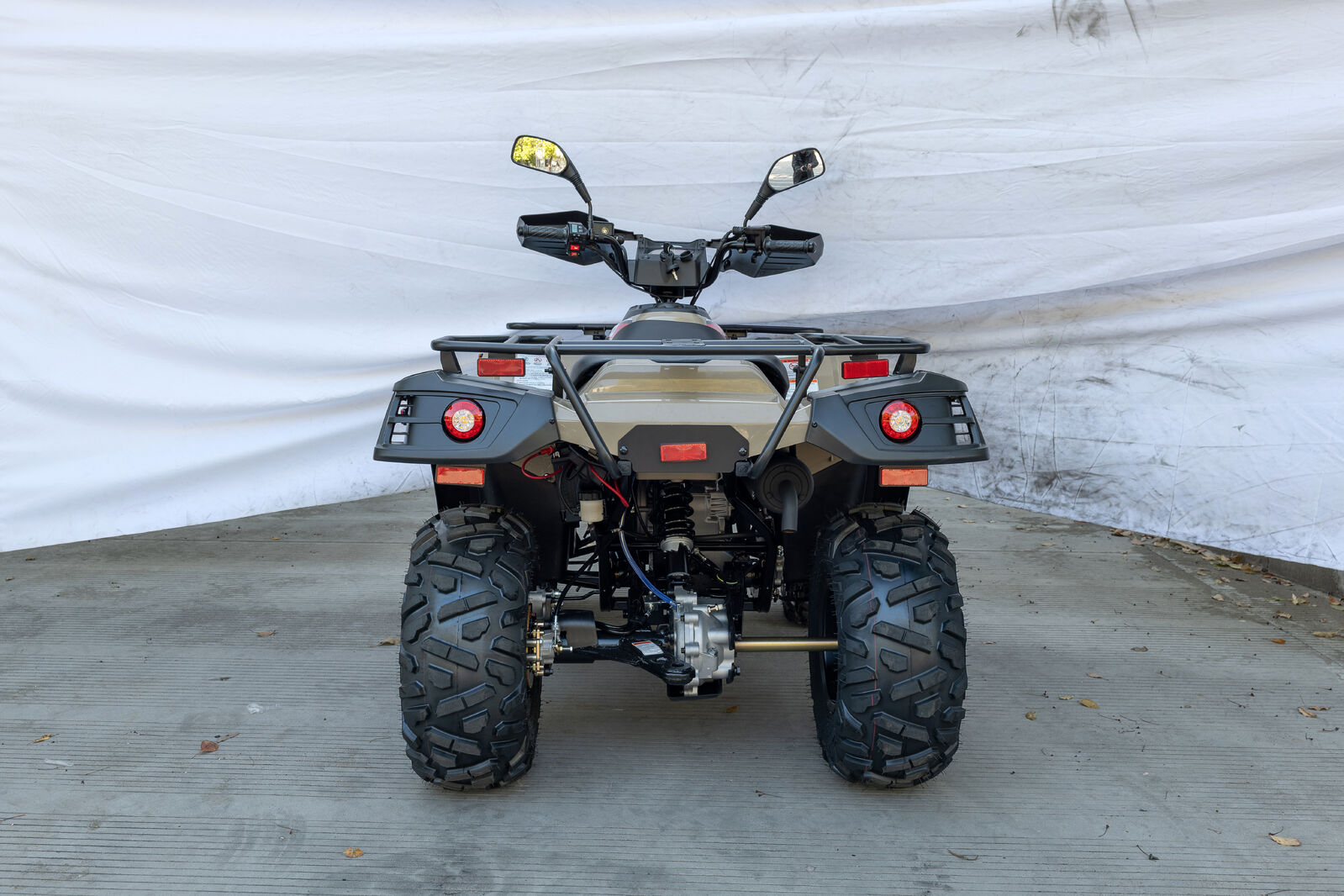

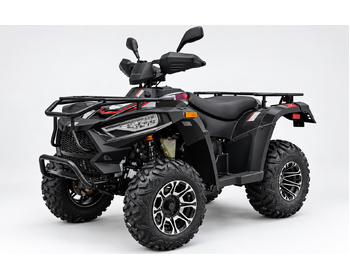

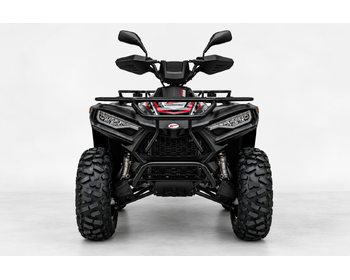

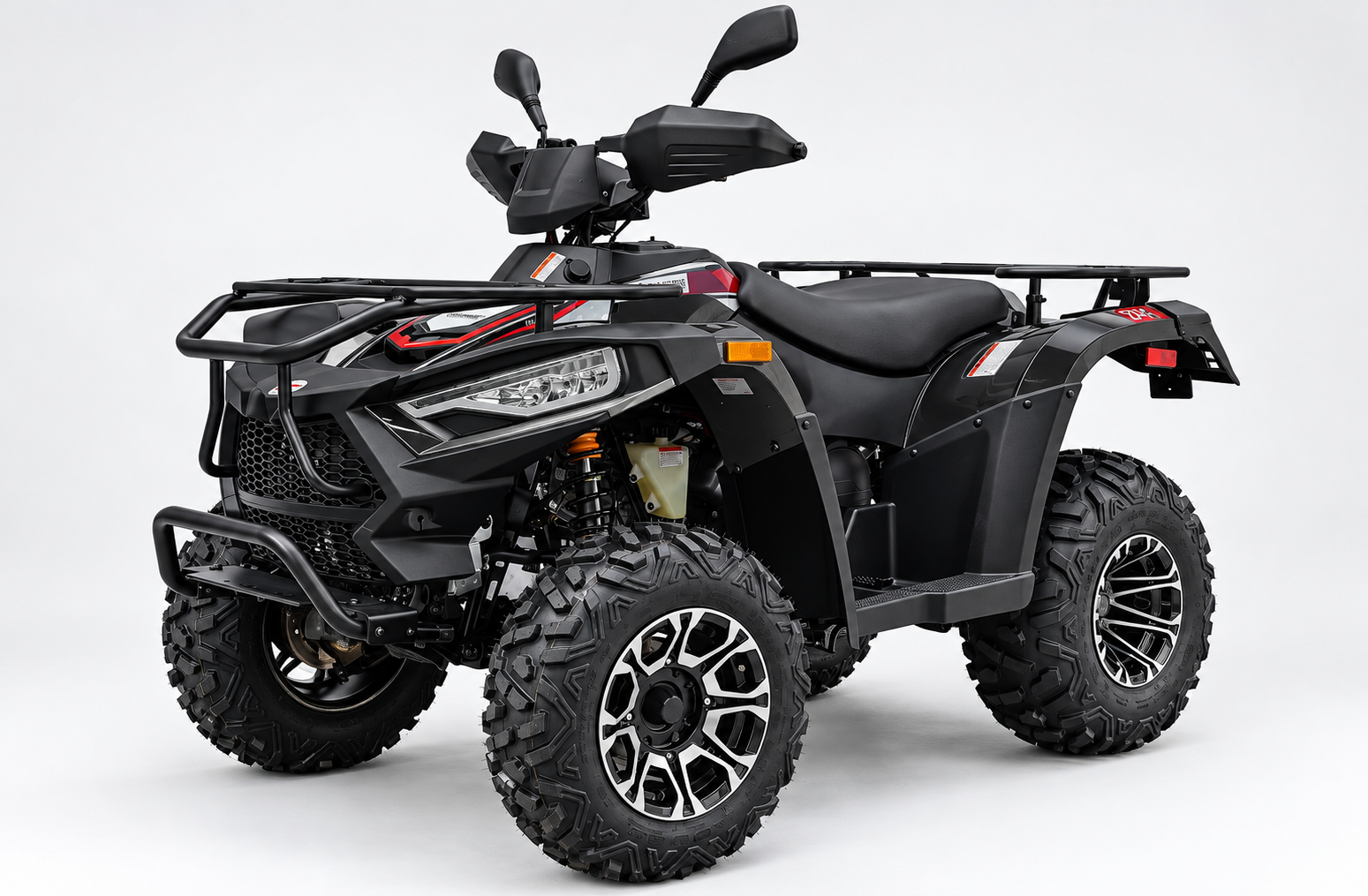

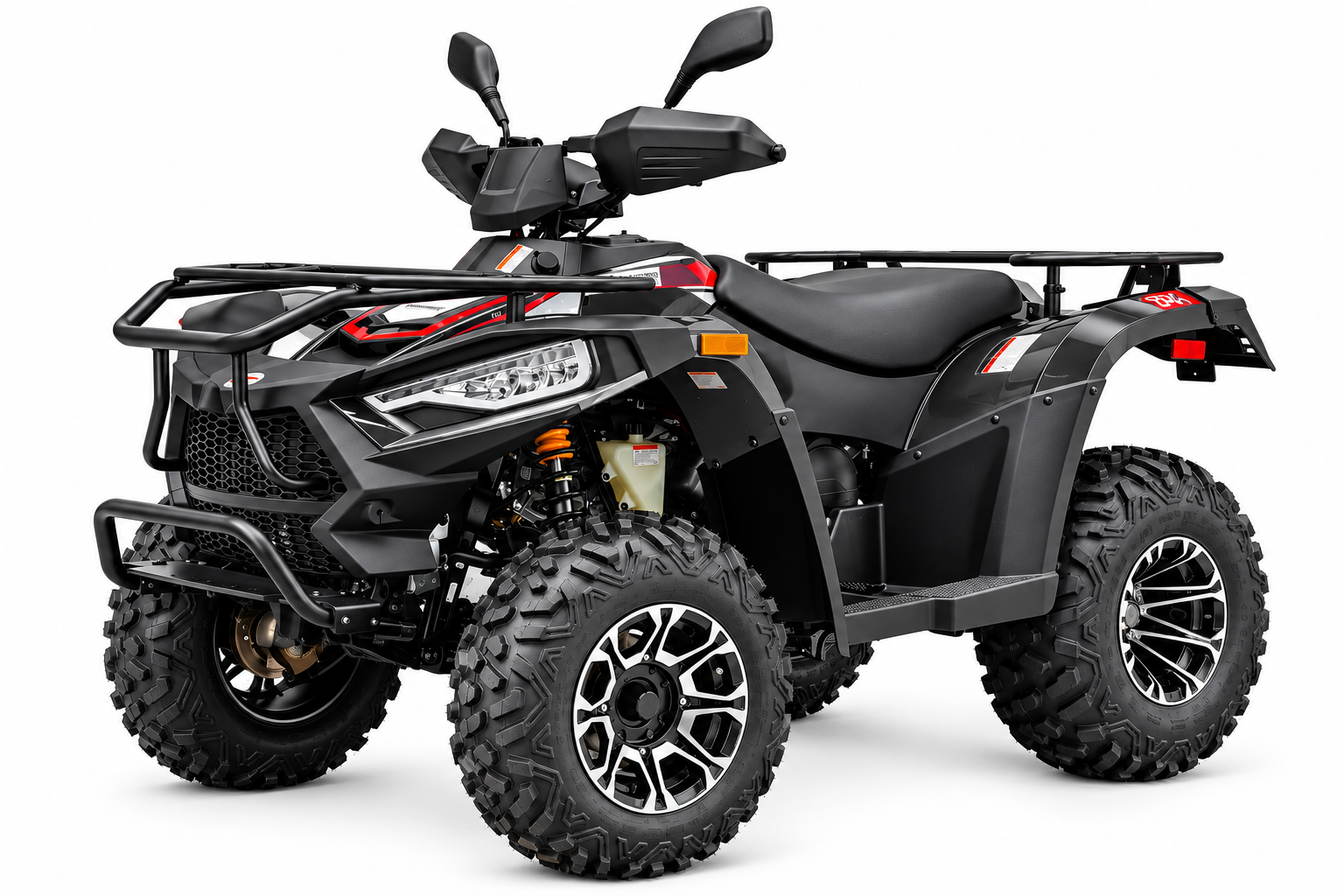

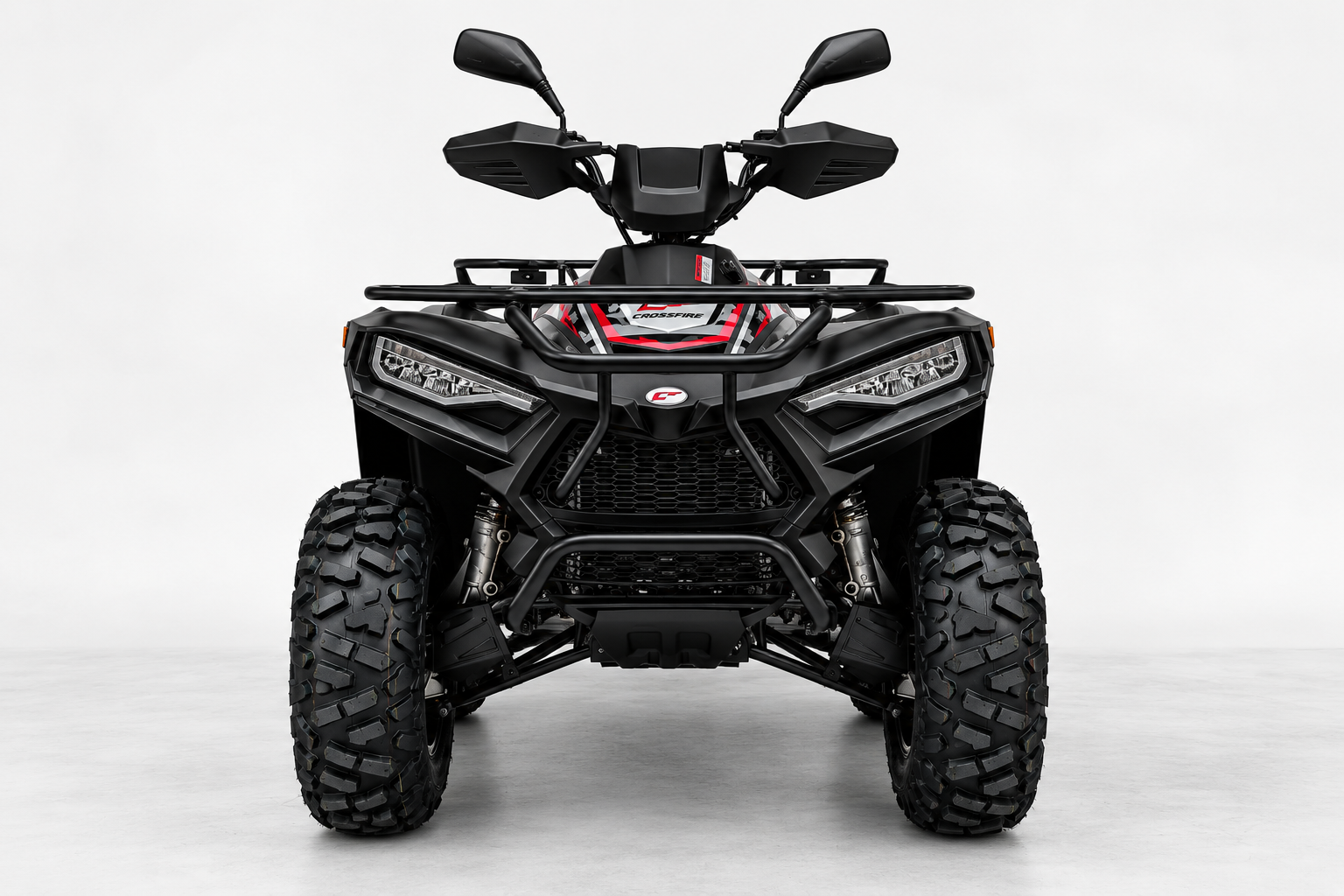

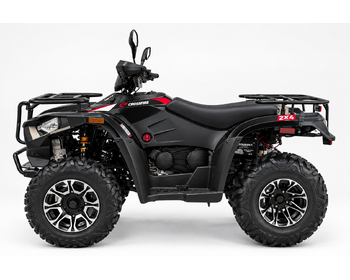

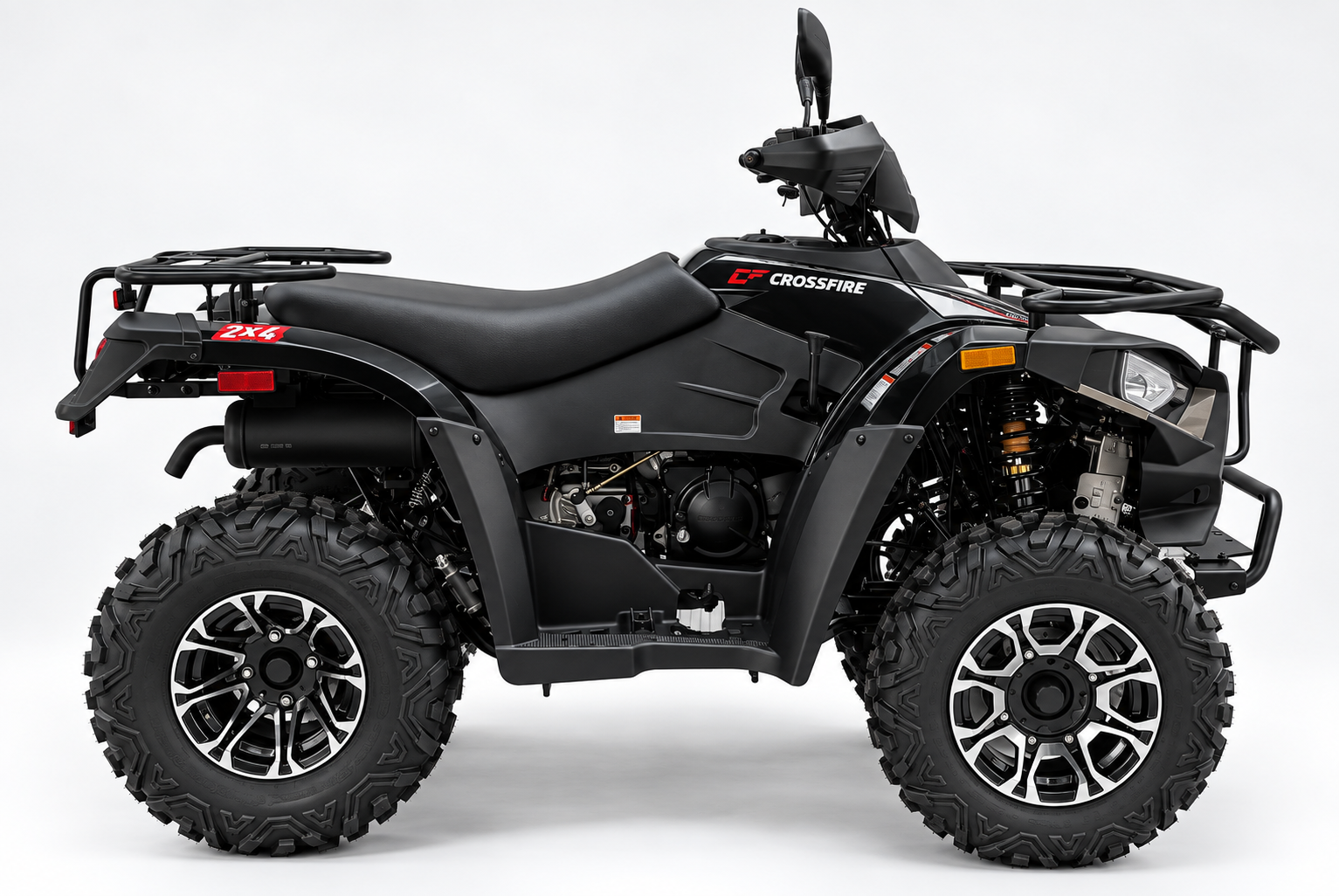

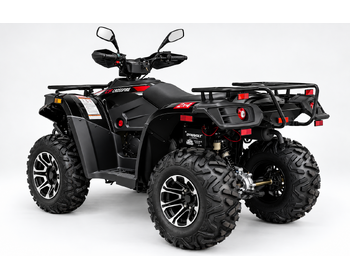

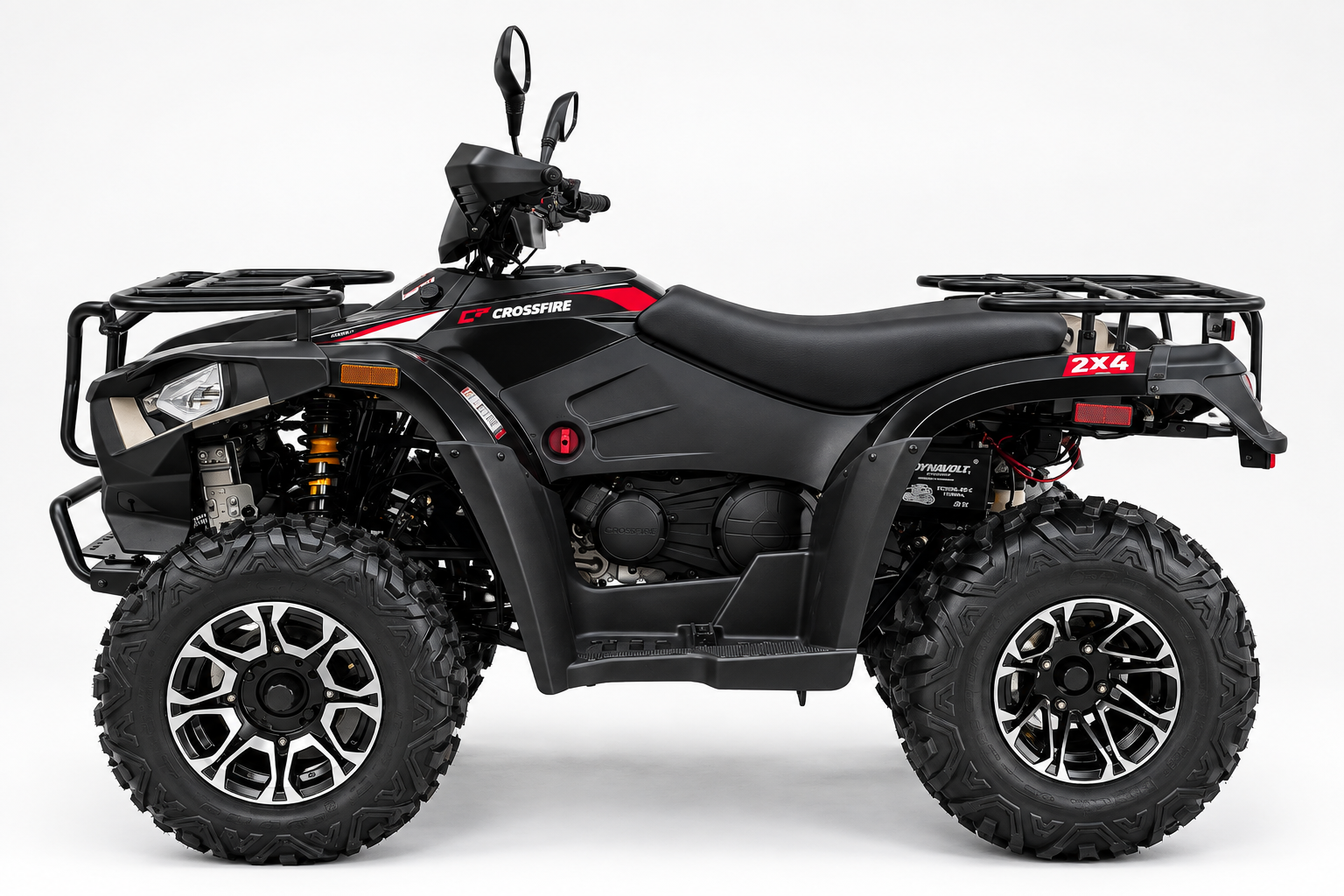

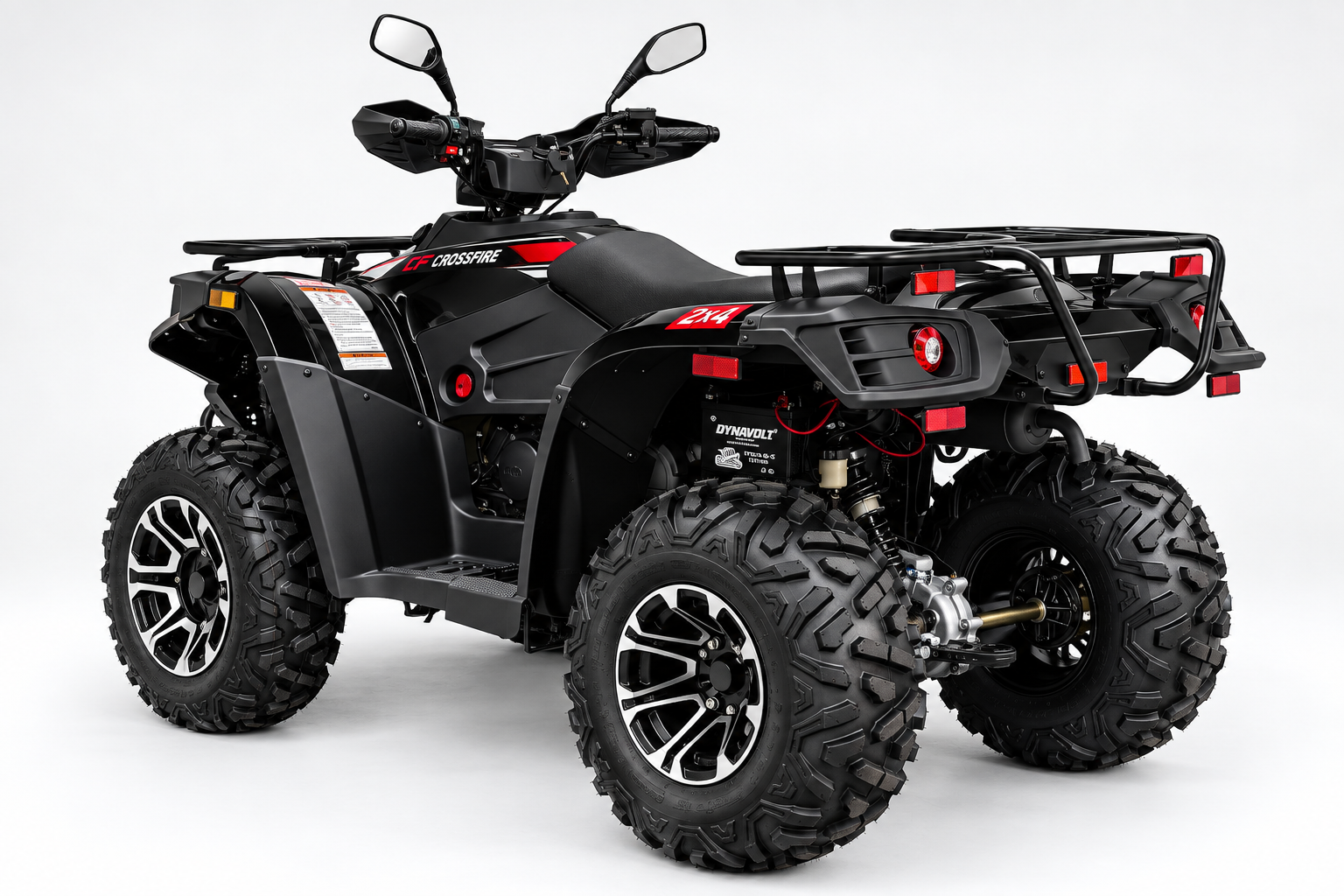

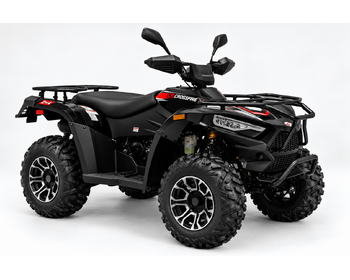

The Crossfire X300 is an addition to our growing fleet of ATVS.

When we design each of our machines there is a purpose and a reason for existence. We have in mind the size and type of use our customers will put our machines through.

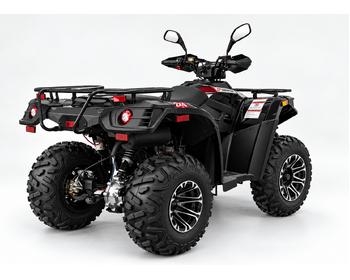

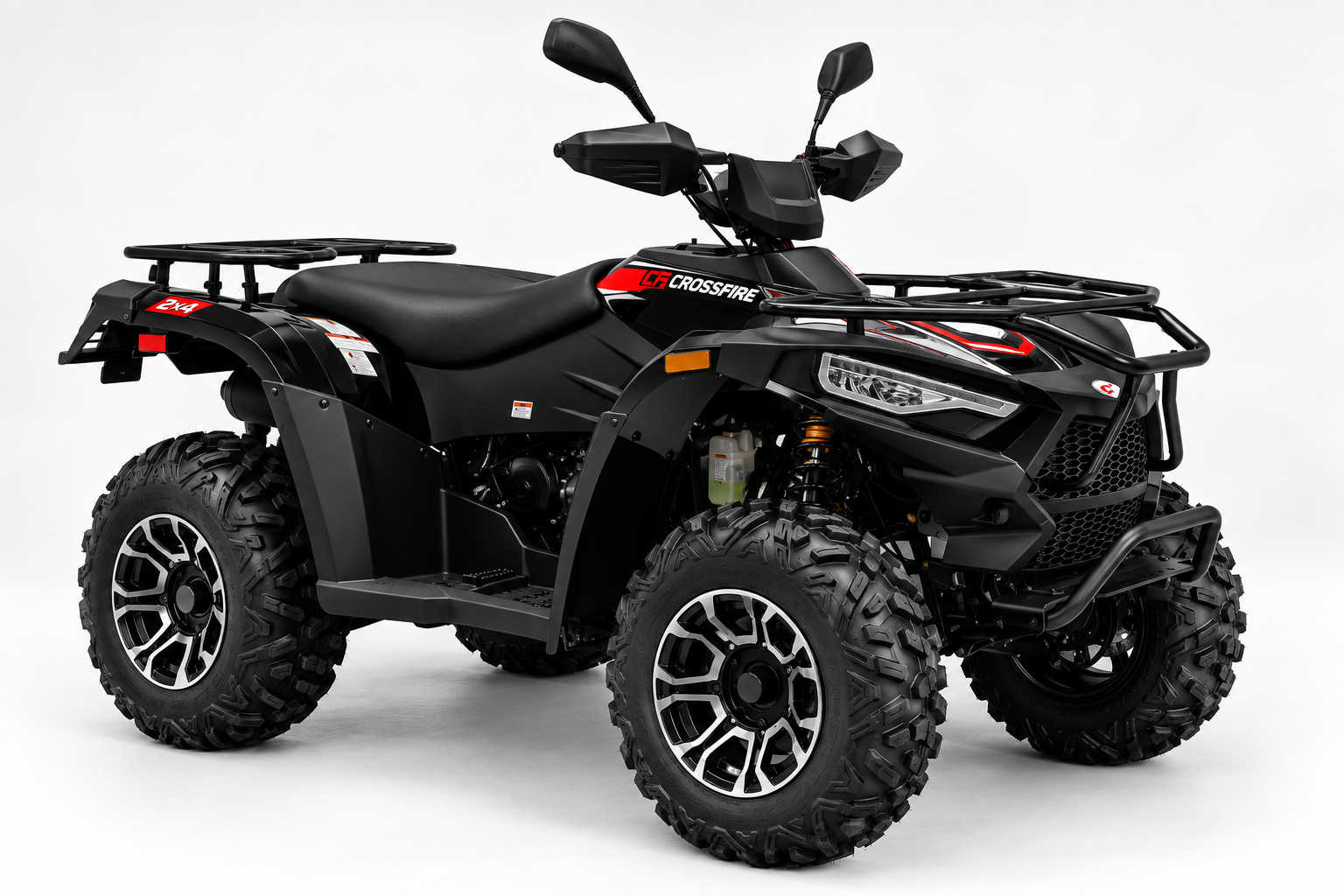

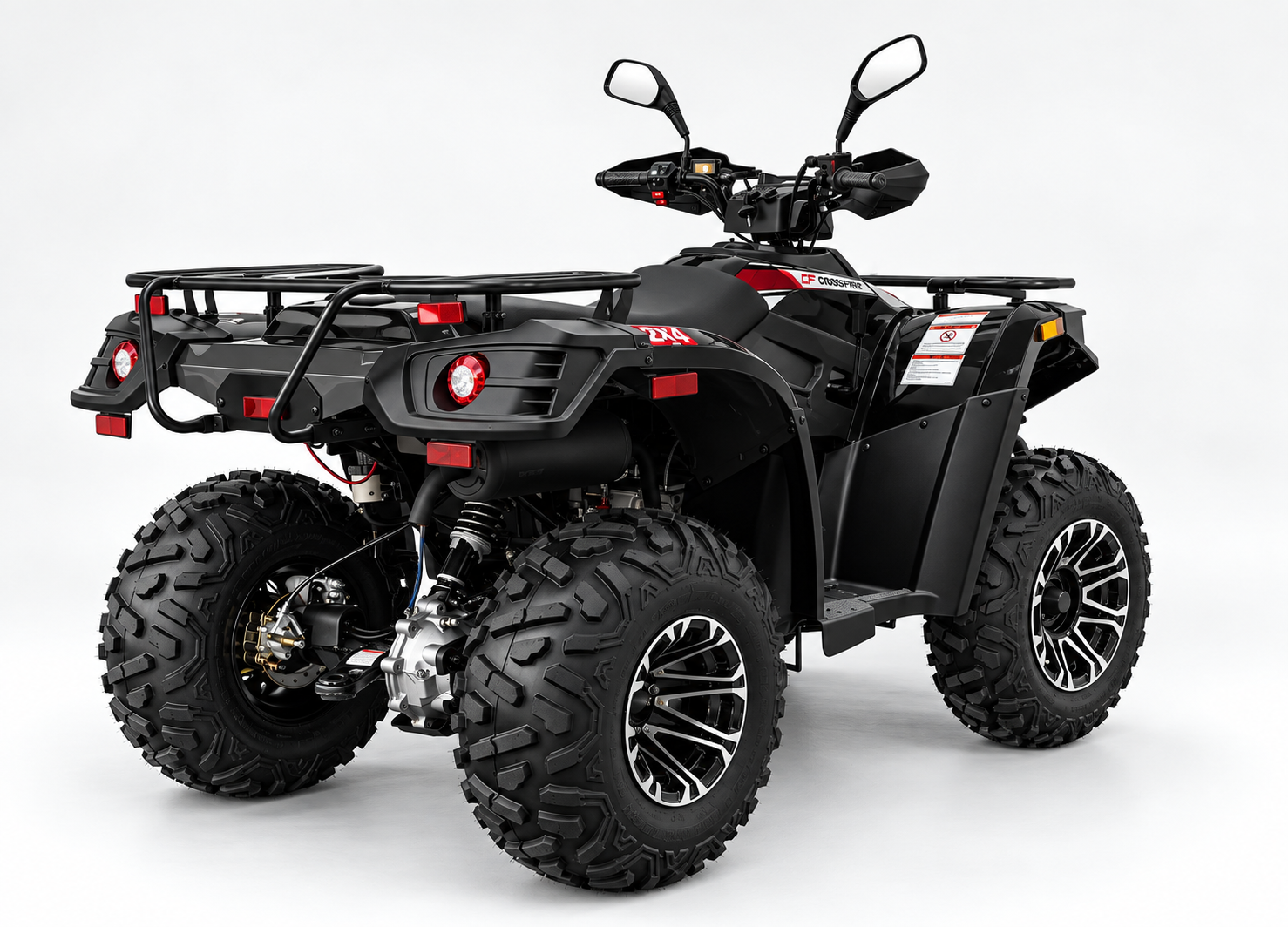

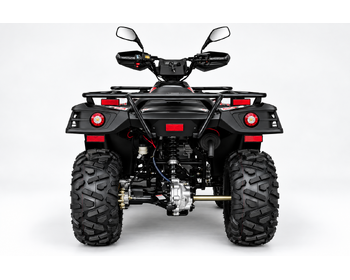

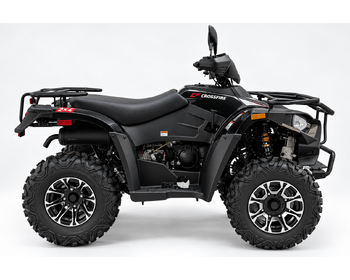

The Crossfire X300 is a practical, value-focused 4WD farm ATV designed to handle general-use tasks across Australian rural properties. As an entry-level model in our range, it provides essential features with reduced daily maintenance requirements—ideal for riders who need capability and compliance without premium pricing.

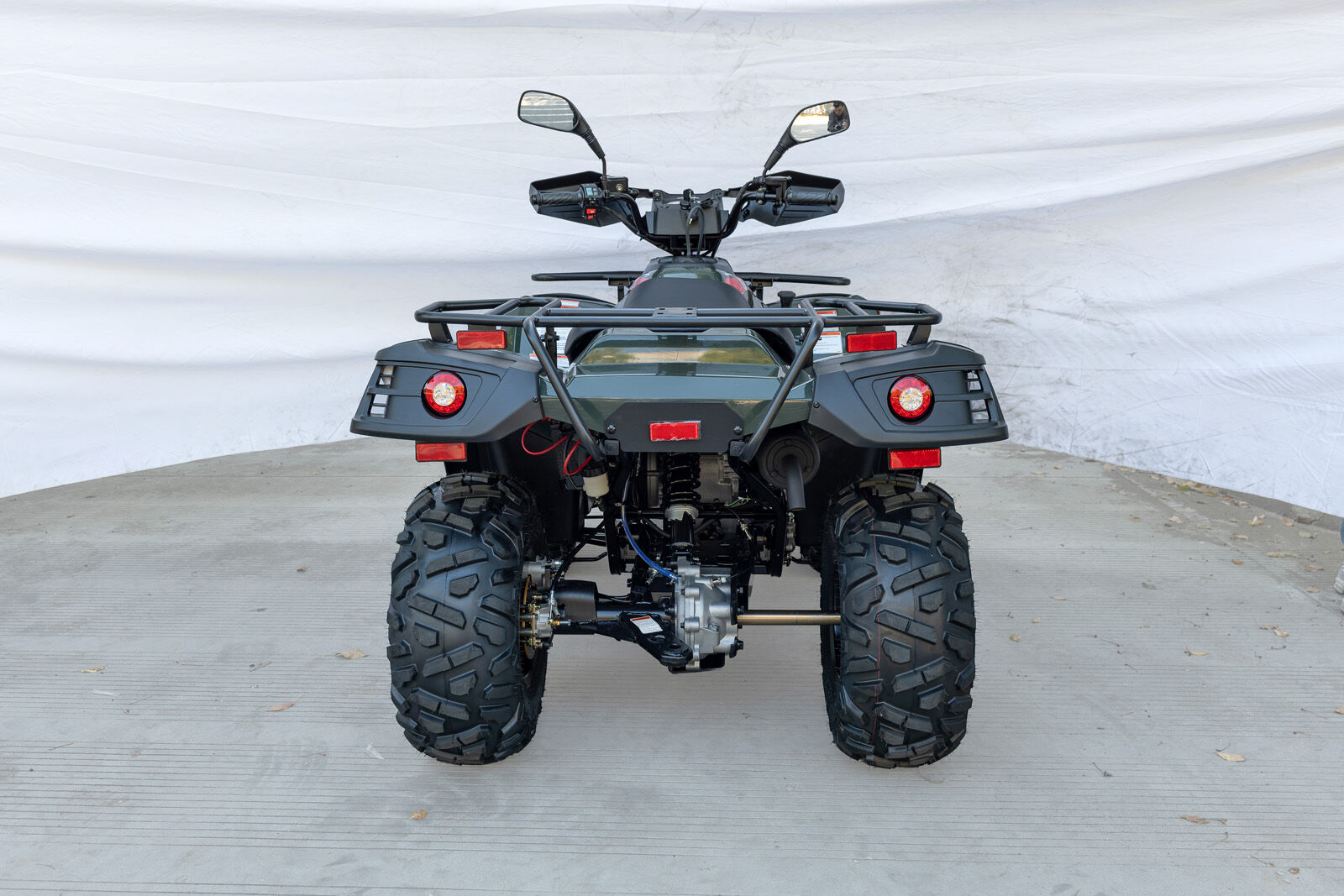

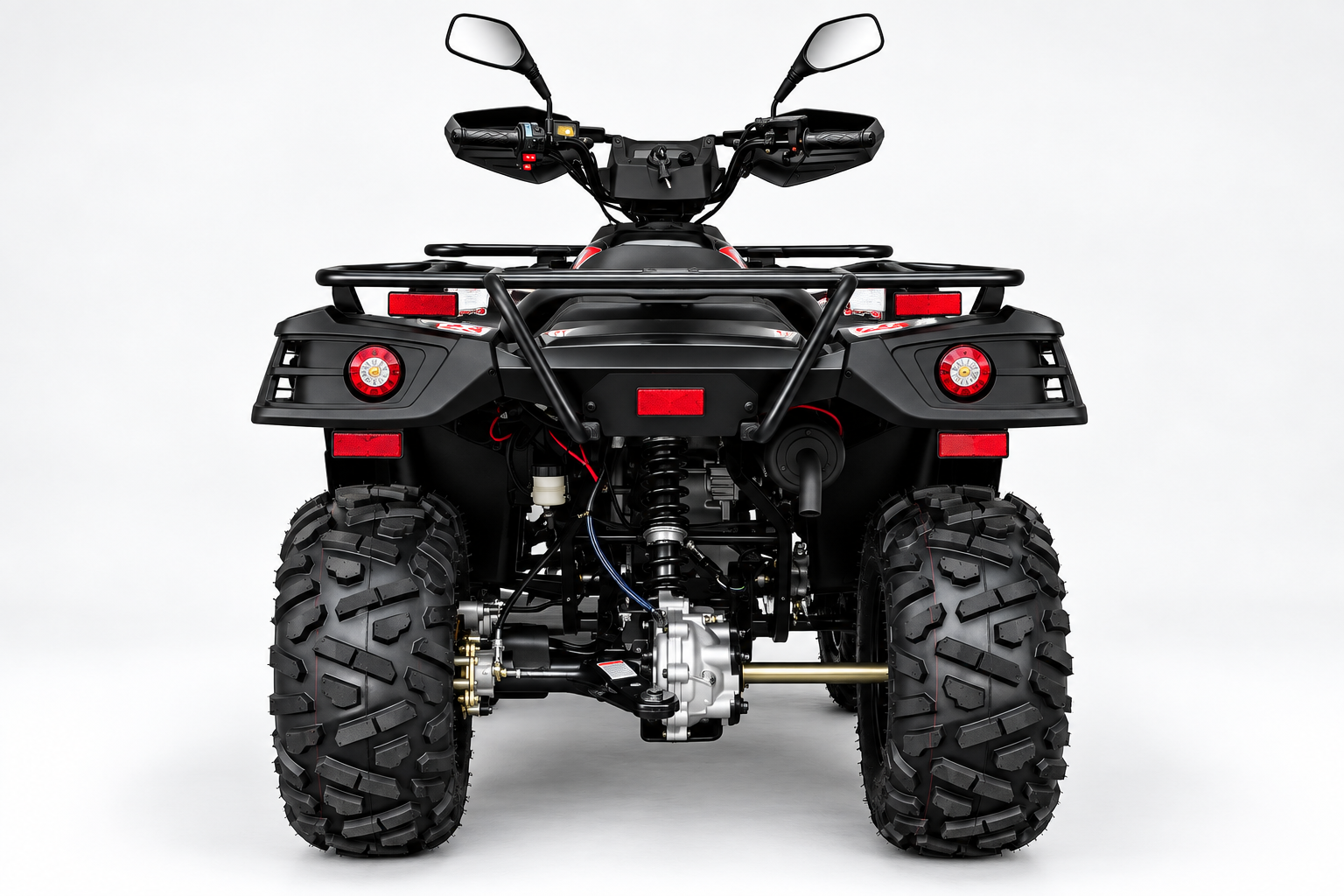

It’s the first in our lineup to feature a sealed shaft drive and differential system, which eliminates the routine upkeep of traditional chain-driven systems. The automatic gearbox with high and low range, combined with a larger clutch and increased torque, makes the X300 well-suited for everyday farm duties like moving gear, light towing, or getting around uneven terrain.

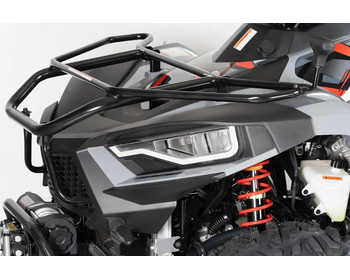

A wider seat with additional padding improves comfort during longer rides, while the water-cooled engine and large radiator help maintain performance in Australia’s hotter and more rugged environments.

The X300 meets Stage Two of the Consumer Goods Quad Bike Safety Standard, including a Quad Bar Flexi CPD safety device fitted by your authorised dealer. It also exceeds the minimum lateral tilt stability angle of 28.81°, achieving a tested result of 32.4°.

While the X300 is not a high-end utility quad, it offers a well-rounded combination of functionality, safety, and value—making it a solid option for general-purpose use around farms and properties.

Speak with your nearest authorised Crossfire dealer to learn more or see the X300 in person.

WARRANTY

12 months up to 24 months*

* If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 2 years for vehicles 250cc and up. Please make sure you have proof of services.

Specifications

ENGINE
Engine LH173M, Single cylinder, 4 stroke
Power 19HP
Bore x Stroke 72.5 × 66.8 mm
Compression Ratio 9.5:1
Fuel System CARB
Cooling Water Cooled
Start Type Electric
Transmission Automatic L-H-N-R
Drive Rear Wheel Drive 2×4
SUSPENSION / BRAKES / TYRES
Suspension Front McPherson independent suspension
Suspension Rear Swing arm
Brakes Front Disk brake, Hand brake, Foot brake
Brakes Rear Disk brake, Hand brake, Foot brake
Tyres Front AT24×8-12
Tyres Rear AT24×11-10
DIMENSIONS
Product Dimensions 2100mm × 1140mm × 1270mm
Ground Clearance 170 mm
Wheelbase 1215 mm
Load Capacity 129kg
Dry Weight 310 kg
Fuel Capacity 14 L
Max Speed >60 km/h
SAFETY
Safety Using ATV with Passenger greatly increases risk of Rollover. Speed should be kept under 15 km/h.
OPTIONS
Winch $399
